HP Designjet 1000 Series Printers - TWI: Paper/Media Will not Feed or Load

Document number: BPP90155

Last Updated: 17-Mar-2003

Minimum skill level: 2

NOTE: Ensure the correct paper/media related technical work instruction (TWI) is being applied to the issue. If media skew issues are occurring, use the Paper/Media Skew TWI (bpp90153). If excessive noise during media advance is the evident, use the Noise During Media Advance TWI (bpp90127).

Paper not loading is usually a result of a paper jam, faulty sensor, mechanical linkages, or possibly a bad vacuum fan. Printer not feeding or loading paper should not be confused with Switch power off, check paper path. Follow the steps listed below to determine the actual cause of the failure and to replace the appropriate parts.

Part Description	C6074A, C6075A, C6074B, C6075B
Media Sensor (Required)	C6072-60190
ARSS Miscellaneous Parts Kit (Required)	C6071-60155
Right Trim (Required)	C6072-60174
Vacuum Fan (Required)	C6072-60159

NOTE: If the printer is installed on a Multi-Roll feeder accessory, some Multi-Roll disassembly is required to gain access to the printer. Instructions for Multi-Roll disassembly are listed at the bottom of this document for reference.

If any of the troubleshooting steps listed below solve the problem, attempt to verify printer functionality by printing several internal prints. If functionality is verified, no additional parts should be replaced.

1. Ensure printer is turned on, and unload any paper loaded into the printer.

2. With the paper unloaded, check the front panel for the Ready for Paper message (if message is displayed, continue with step 8).

3. If the Ready for Paper message does not appear, raise the ARSS handles.

4. Locate the media sensor (media sensor is approximately 4 inches to the left of the white alignment line on the entry roller and 3 inches back of the center guide). Ensure the media sensor flag is protruding up through the Center Guide approximately one quarter of an inch.

   NOTE: If you line up the right edge of a regular sheet of paper with the right ARSS handle, insert it about halfway, and slowly slide the paper to the right, the paper should stop when the right edge is aligned with the second Overdrive roller from the right. At this point, the sheet should be hitting the media sensor flag (repeat a couple times if the paper does not stop in this location).

5. Lower the ARSS handles and insert a strip of paper to trigger the media sensor. If the paper is not triggering the media sensor to display a Ready for Paper message, replace the media sensor (refer to pg. 8-29 of the Service Manual).

   NOTE: If Removal and Installation instructions are needed for reference during any repairs performed, refer to the 1000 Series Service Manual available on the Partner Care Web site for review or download.

6. Following replacement, attempt to verify functionality.

7. If no problems are found or the problem persists, continue with the remaining steps.

8. Lift the ARSS handles, the front panel should display a Roll Load message and provide paper loading instructions. Load a Roll to verify functionality. If still having issues, continue with the remaining steps.

9. If the ARSS handles won't lift or the Roll Load message is not displayed, replace the ARSS Miscellaneous parts (refer to pg. 8-21 of the Service Manual). If the Roll Load message is displayed, but the printer does not beep after inserting the paper roll a minimum of 6 to 8 inches, then replace the media sensor (refer to pg. 8-29 of the Service Manual).

10. Following replacement, turn the printer on and perform a Calibrations Backup and Pen Alignment calibration (instructions below)

11. Following the calibrations, attempt to load paper (printer should beep and display the message Lower Handles to Continue).

12. Lower handles and select the paper type.

13. The printer should pull the paper in and begin performing a printhead alignment procedure.

14. Verify printer functionality.

If any of the troubleshooting steps listed below solve the problem, attempt to verify printer functionality by printing several internal prints. If functionality is verified, no additional parts should be replaced.

NOTE: If a Multi-roll feeder accessory is installed, the feeder must be turned off before enabling the printer's sheet feed option. If the Multi-roll is turned on, the printer will not load sheet paper.

1. Ensure the printer is turned on.

2. Lift the top cover (the printer will beep and should display a Sheet Load message on the front panel). If the message appears, go to step 5.

3. If no message appears, check that the window sensor in right trim is not stuck closed.

4. Fix or replace the window sensor (included with the right trim) as needed (refer to pg. 8-7 of the Service Manual). If replaced, attempt to verify functionality (continue with the remaining steps if the problem persists).

5. Open the Top cover and listen for the Vacuum fan to turn on. If the fan turns on, attempt to verify functionality.

6. If the fan does not turn on, attempt to load roll paper before determining the Vacuum fan is faulty.

7. If the fan still does not turn on, replace the Vacuum fan (refer to pg. 8-11 of the Service Manual). Following replacement, perform a Service Station and Color to Color calibration (instructions listed below).

8. Verify printer functionality.

NOTE: Printer menu mode must be set to Full to access the Service Tests submenu. To verify, at the Ready prompt, scroll to the PRINTER SETUP icon, and press Enter. Use the Arrow keys to scroll to the Utilities menu and press Enter. Using the Arrow keys scroll to Menu Mode =. Select Full (if needed) and press the Back key to return to the main menu.

1. Turn the printer on and allow initialization to complete.

2. At the Ready prompt, scroll to the Printer Setup icon and press Enter.

3. Use the Arrow keys to scroll to Utilities, and press Enter.

4. Press the Up Arrow key and the Enter key simultaneously. You will now be in the Service Tools menu.

5. Scroll to Service Calibrations and press Enter.

6. Scroll to the needed Service Calibration and press Enter.

7. Follow instructions displayed on the front-panel to complete the selected calibration.

8. When calibration is finished, stay in Service mode to perform any additional calibrations (if required).

9. When all required calibrations are complete, return to the main Status display using the Back key.

10. Turn the printer off.

11. Turn the printer on, and attempt to verify functionality.

Only remove the corresponding side cover of the Multi-Roll that requires maintenance. For example, only remove the right side cover of Multi-Roll if only the right end cover of the printer requires removal to complete the necessary service. Follow the steps listed below to gain access to the printer to complete the necessary service.

NOTE: Only ONE CE needs to be dispatched to perform service on a 1000 Series printer attached to a Multi-Roll feeder.

WARNING: Turn both the printer and the Multi-Roll feeder Off and disconnect them from the power source prior to performing any maintenance.

1. Open the left door of the Multi-Roll feeder.

2. Loosen the two screws that secure the left door to the Multi-Roll feeder.

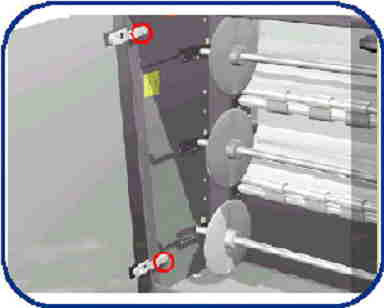

   Figure 1:Screws securing the left door to the Multi-Roll feeder



3. Remove the left door.

   CAUTION: Be careful when removing the door not to break it.

4. Remove the two star screws (Orange) that secure the front top-cover to the Multi-Roll feeder.

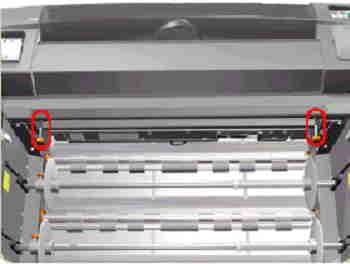

   Figure 2:Screws securing the front top-cover



5. Remove the Multi-Roll feeder top cover.

6. Remove six T-20 screws that secure the left Side cover to the Multi-Roll feeder from the front.

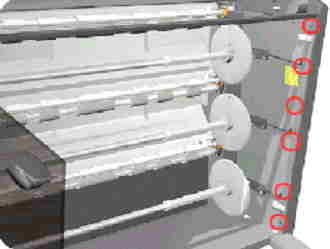

   Figure 3:Screws securing the front left-side cover



7. Remove the seven T-20 screws that secure the left side cover to the Multi-Roll feeder from the rear.

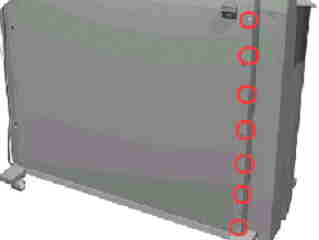

   Figure 4:Screws securing the rear left-side cover



8. Remove the left side cover.

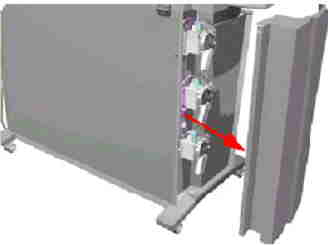

   Figure 5:Removing the left side cover



WARNING: Turn both the printer and the Multi-Roll feeder Off and disconnect them from the power source prior to performing any maintenance.

1. Remove the Right door and Front top cover from the Multi-Roll feeder (follow steps 1 through 5 of the previous section and remove the right door instead of the left).

2. Remove Six T-20 screws that secure the right side cover to the Multi-Roll feeder from the front.

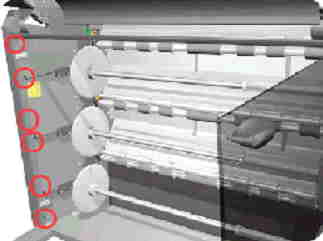

   Figure 6:Screws securing front right-side panel



3. Remove nine T-20 screws that secure the right side cover to the Multi-Roll feeder from the rear.

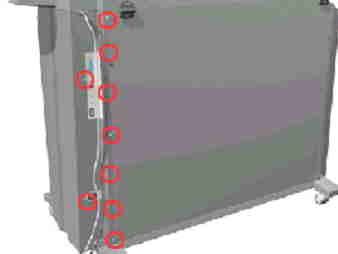

   Figure 7:Screws securing rear right-side cover

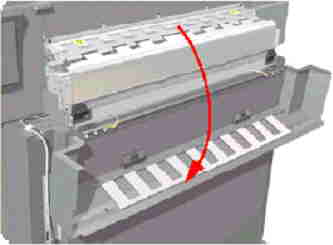

4. Open the Rear Top cover.

   Figure 8:Rear Top cover

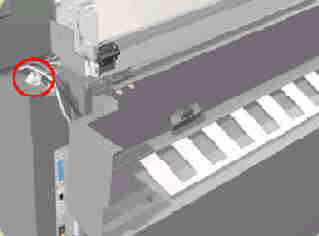

5. Release the cable that is attached to the top of the right side cover.

   Figure 9:Cable connection



6. Remove the right side cover.

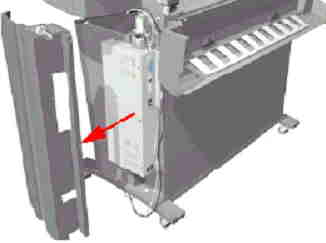

   Figure 10:Removing the right side cover



Follow the procedures listed above in reverse order.
