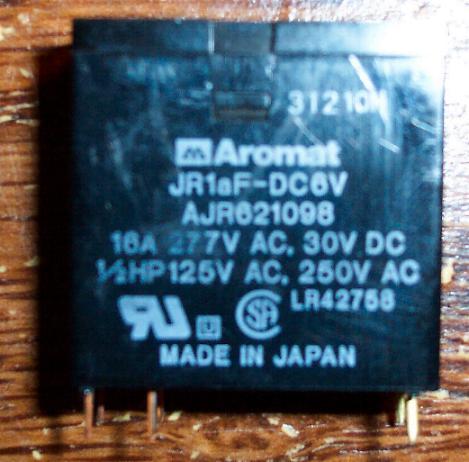

Aromat JR1aFDC6V Slim Type Power Relay

Part# JR1aF-DC6V, OEM New Factory Original

AJR621098, Used in Gerber, Model HS-750, Cutter, Pen Plotter,

High contact capacity type,



FEATURES

· AC coil types and high capacity (16 A) types

· Wide insulation distance: 8 mm .315 inch between coil and contact

· High dielectric withstanding for transient protection: JR can withstand  10,000 V surge in µs between coil and contact.

· High inrush current capability: 1 Form A: 111 A inrush (TV-5),

· Slim package for tandem mounting: Header area is 28.6 mm × 12.8 mm  1.126 × .504 inch

· Molded materials: all 94 V-0

· TM and TMP types available

· TÜV also approved

SPECIFICATIONS ...

TYPICAL APPLICATIONS

· Microwave ovens

· Refrigerators

· Copiers

· Facsimiles

· Air conditioners

· Stereo equipment

· TV sets

· Vending machines

· Temperature controllers

hs750, hs 750
