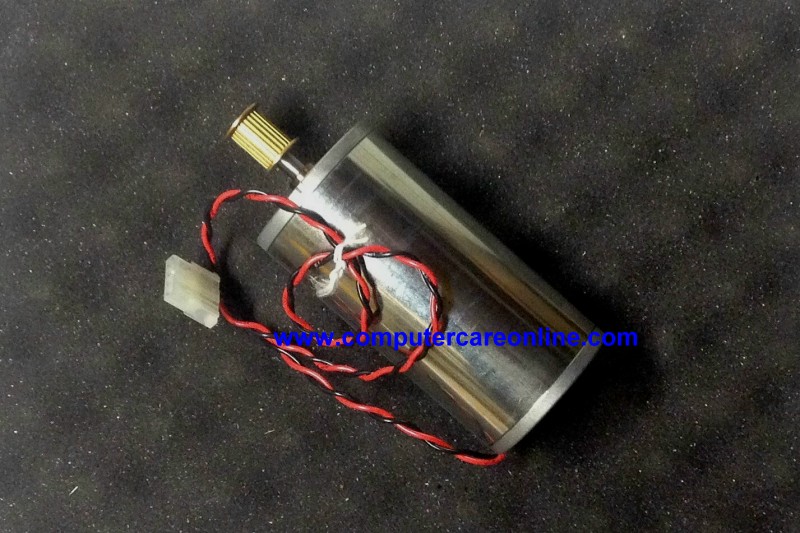

Q1273-60071 Scan Axis / X-Axis Carriage Drive Motor Assembly for HP DesignJet 4000 DesignJet 4500 DesignJet Z6100 Plotters OEM NEW

Q1273-60071 is a New Genuine OEM HP Scan-axis or X-axis motor assembly. Used to drive the carriage belt, the long toothed belt, to move the carriage from end to end of the plotter over the paper.
For 42-inch plotters (RoHS: Modified)

Scan axis motor is usually the cause of these error codes:
DesignJet 4000 system error 42:03, 42:10, related to 72:03, 86:01, 86:03, 86:10,
DesignJet 4500 / 4520 PWM Shutdown, Energy Shutdown, 42:03, 42:10, 73:03, 86:01, 86:10,
DesignJet Z6100 PWM Shutdown, Energy Shutdown, 42:03, 42:10, 73:03, 86:01,

Scan Axis motor used in the following HP DesignJet Plotter Models
Designjet 4000 Printer  Q1273A,  Q1273AR
Designjet 4000ps Printer  Q1274A,  Q1274AR
Designjet 4020 42-in Printer CM765A, CM765AR,
Designjet 4020ps 42-in Printer   CM766A, CM766AR,
DESIGNJET 4500 PRINTER  Q1271A,  Q1271AR
DESIGNJET 4500MFP  Q1276A,  Q1276AR
DESIGNJET 4500PS PRINTER  Q1272A,  Q1272AR
Designjet 4520 42-in Printer CM767A, CM767AR,
Designjet 4520 HD Multifunction Printer  CM769A, CM769AR,
Designjet 4520ps 42-in Printer  CM768A, CM768AR,
DESIGNJET 4520 SCANNER   CM770AR
DESIGNJET L25500 42-IN PRINTER
DESIGNJET L25500 60-IN PRINTER
Designjet Z6100 42-in Photo Printer  Q6651A,  Q6651AR
Designjet Z6100 42-in Printer  Q6651C,  Q6651CR
Designjet Z6100ps 42-in Photo Printer  Q6653A,  Q6653AR
DESIGNJET Z6100PS 42-IN PRINTER  Q6653C,  Q6653CR

DesignJet 4000 refer to page 8-88 in the service manual for remove and replace instructions.
DesignJet 4500 / 4520 refer to page 8-95 in the service manual for remove and replace instructions.
DesignJet Z6100 refer to page 346 (chap. 8) in the service manual for remove and replace instructions.
